Welcome to the 3-Step Podcast Studio!

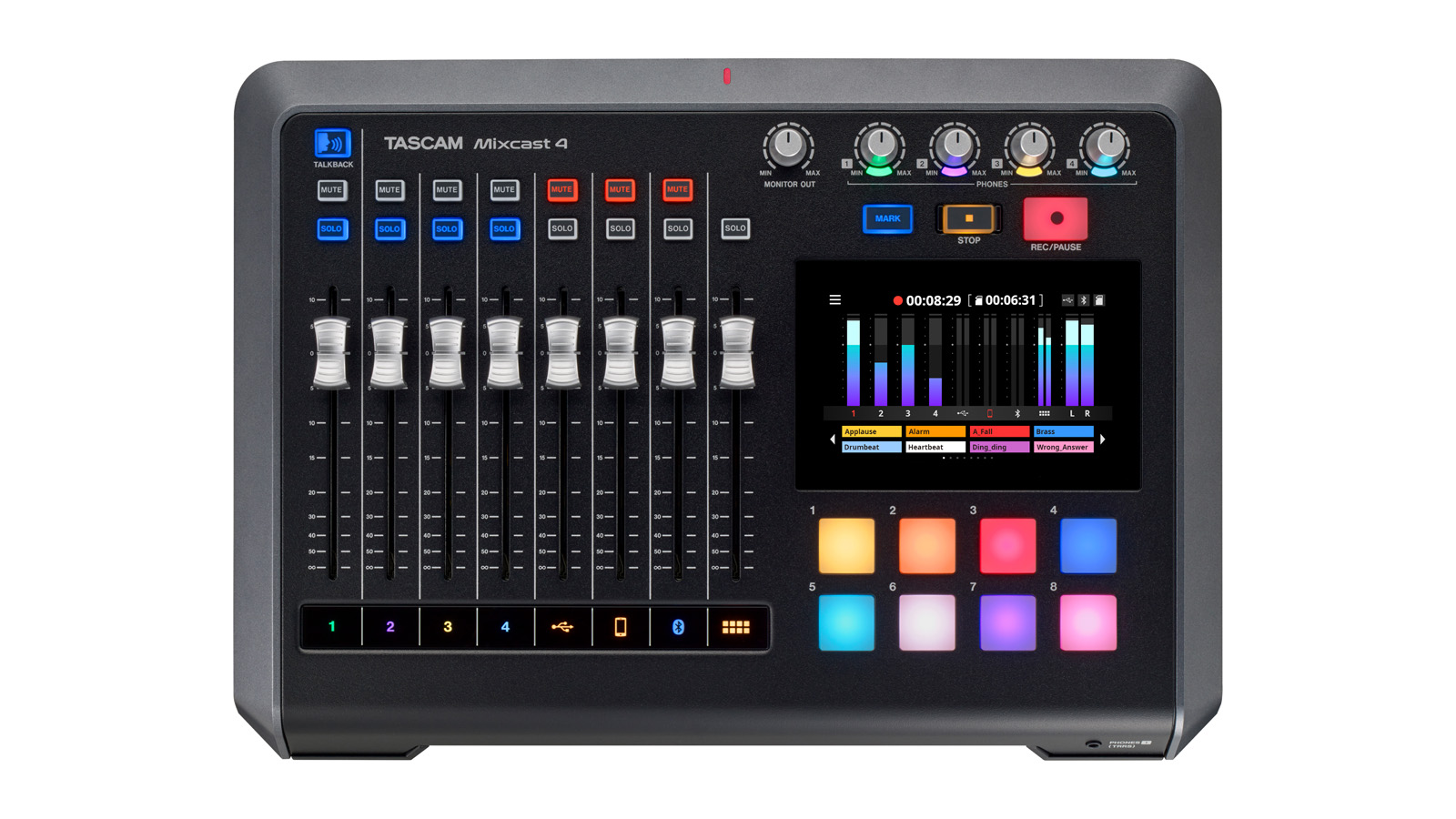

The Edge Studio SM7B microphones are connected via a splitter and ready to go for Podcasting. You record your session using the Tascam Mixcast 4 either on the mixer using your SD card or an audio application on a laptop.
Step 1: Get Ready at Your Station
- Sit comfortably in front of your assigned SM7B microphone.
- Position the mic 6–8 inches from your mouth, slightly off to the side (this reduces plosive “P” and “B” pops).
- Speak normally toward the microphone.
Step 2: Put on Headphones

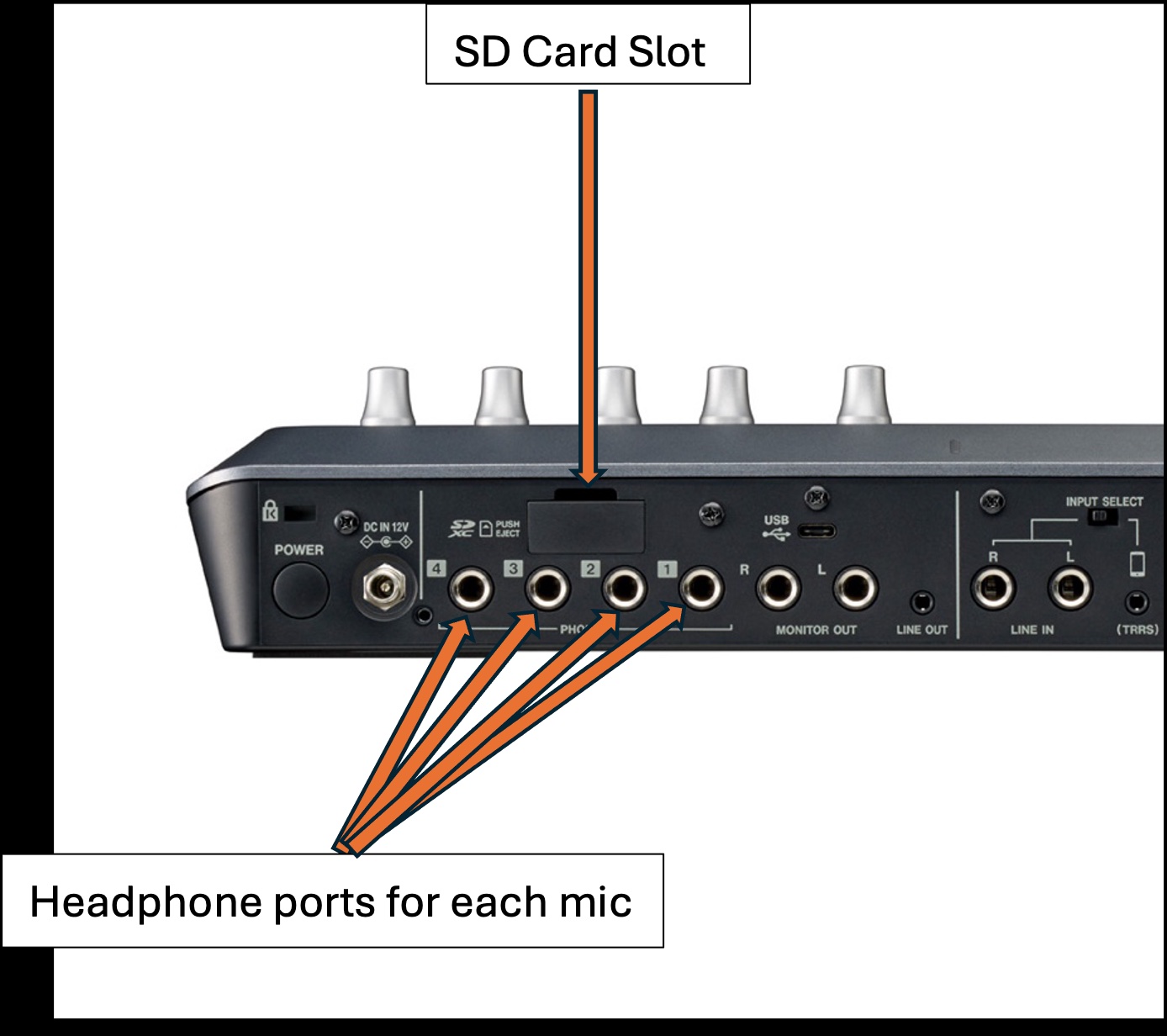

- Plug the studio headphones into the Mixcast 4 headphone jack.
- Adjust the headphone volume so you can clearly hear yourself and others.
Step 3: Choose Your Recording Method
Option A – Record Directly to SD Card (Recommended – Simplest)
- Insert your formatted SD card into the Mixcast 4 slot.
- If prompted on the touchscreen, tap Yes.
- Press the large red Record button on the Mixcast 4.
Option B – Record to Your Laptop via USB-C
For Mac Users (No extra driver needed):
The Mixcast 4 is USB Class Compliant on macOS. It works immediately as a 14-channel audio interface.
- Connect the USB-C cable from the Mixcast 4 to your Mac.
- macOS will automatically recognize the device.
- Recommended Software Options:
- Tascam Podcast Editor (Free from Tascam) – Best for simple podcast workflows.
- GarageBand (Free, pre-installed on most Macs) – Great for beginners.
- Adobe Audition – Professional option with advanced editing.
- In your chosen software:
- Select “Mixcast 4” as the audio input and output device.
- You will see up to 14 input channels:
- Channels 1–2: Stereo Mix
- Channels 3–6: Individual Microphone channels (ideal for multitrack)
- Additional channels for sound pads, USB input, etc.
- Arm the tracks you want to record and start your session.
Option C – Windows Laptop
Tascam Podcast Editor (Free from Tascam) can be downloaded from the Tascam website and used without the ASIO Driver. Note: All other DAW software will require the ASIO Driver and proper settings selections to function as a true multitrack recorder
- Download and install the Tascam ASIO Driver from the official Tascam website.
- Select the Tascam Mixcast 4 ASIO driver in your DAW program for full multitrack access.
- For Adobe Audition, go to Edit -> Preferences -> Audio Hardware
- Make sure that ASIO is selected as the Device Class so that you see Mixcast 4 ASIO Driver displayed for Default Input and Output.
Step 4: Sound Check & Start Recording
- Speak into your mic and watch the level meters on the Mixcast 4 touchscreen. Blue/White = Good | Red = Too loud (avoid clipping).
- When ready, press Record (SD card) or start recording in your software/DAW.
- You may use the sound pads for intros, music, or effects if enabled.
Step 5: Record Your Podcast
Speak naturally. The SM7B dynamic microphones focus on your voice and effectively reject background noise.
Step 6: Stop Recording
- Press the Stop button on the Mixcast 4 (or stop in your software).
- For SD card: Safely remove your card after stopping.
Step 7: Save & Clean Up
- Transfer files from your SD card or save your DAW project and back them up.
- Return headphones to their proper place.
- Tidy the area and let the Media Center staff know you are finished.
Quick Tips
- Format your SD card in the Mixcast 4 for best results.
- Avoid bumping the table or microphone while recording.
- Do not adjust gain/knobs yourself — ask for help if levels are off.
- The Wheatstone Blade handles the live feed. The Mixcast 4 is for your recording.
- Mac users: Use GarageBand or Tascam Podcast Editor for the easiest experience.
- For best multitrack results, record to individual channels when using a DAW.
Have fun and create great content!
